Operate Basket Dump Cylinder Locks

When basket is in the raised position, engage front and rear dump cylinder locks (A) and lower basket onto locks BEFORE working under basket. When lowering basket, disengage locks on the front and rear basket cylinders. Stand clear when basket is lowered. Basket will not lower unless locks are disengaged.

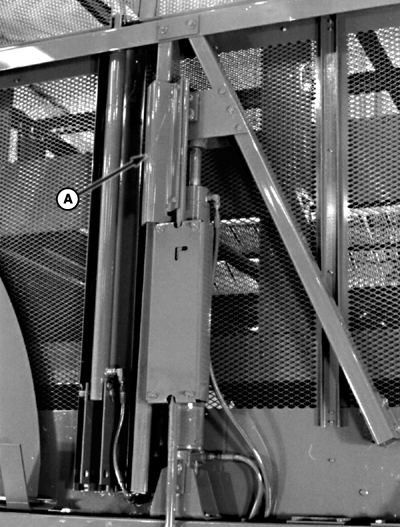

A-Front and Rear Dump Cylinder Locks
