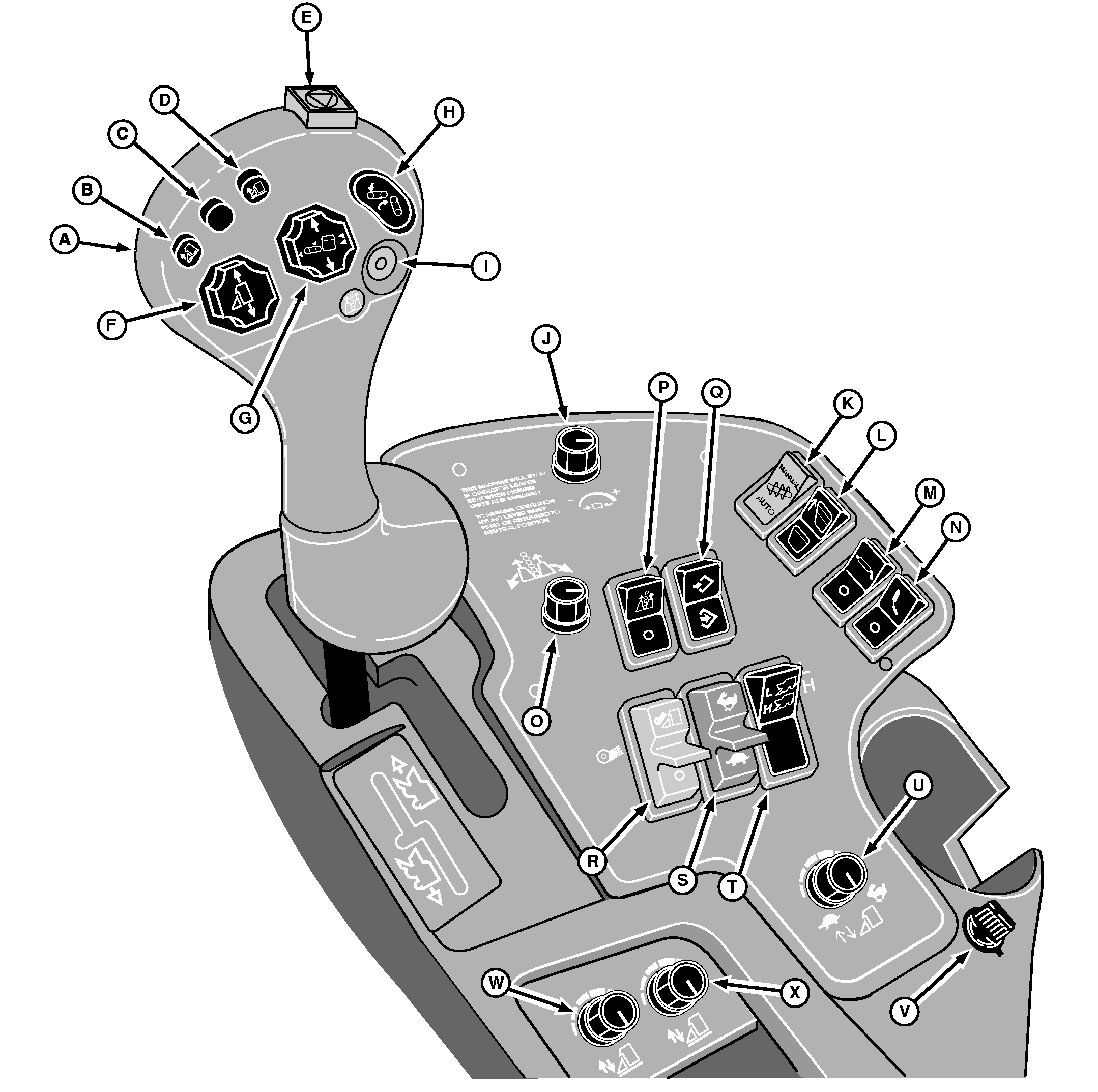

A-Hydro Lever
B-Raise Left-Hand Units Button
C-No Function
D-Raise Right-Hand Units Button
E-No Function
F-Raise/Lower All Units Button
G-Raise/Lower Basket And Operate Conveyers Button
|
H-Open/Close Basket Door Button
I-ROW-TRAK Engage Button (if equipped)
J-Moistener System Pressure Adjust Knob
K-Auto/Manual Compactor Augers Switch
L-Raise/Lower Basket Extension/Ducts Switch
M-Onboard Lube Switch
|
N-Tether Control Switch
O-ROW-TRAK Offset Adjust Knob (if equipped)
P-ROW-TRAK On/Off Switch (if equipped)
Q-ROW-TRAK Cal/Learn Switch (if equipped)
R-Fan/Units Switch
S-Throttle Switch
T-Rear Wheel Drive Switch (If Equipped)
|
U-Header Height Control Rate Response Knob
V-Accessory Outlet
W-Height Adjust Knob For Left-Hand Units (Under Armrest)
X-Height Adjust Knob For Right-Hand Units (Under Armrest)
|
