Tachometer/Hour Meter

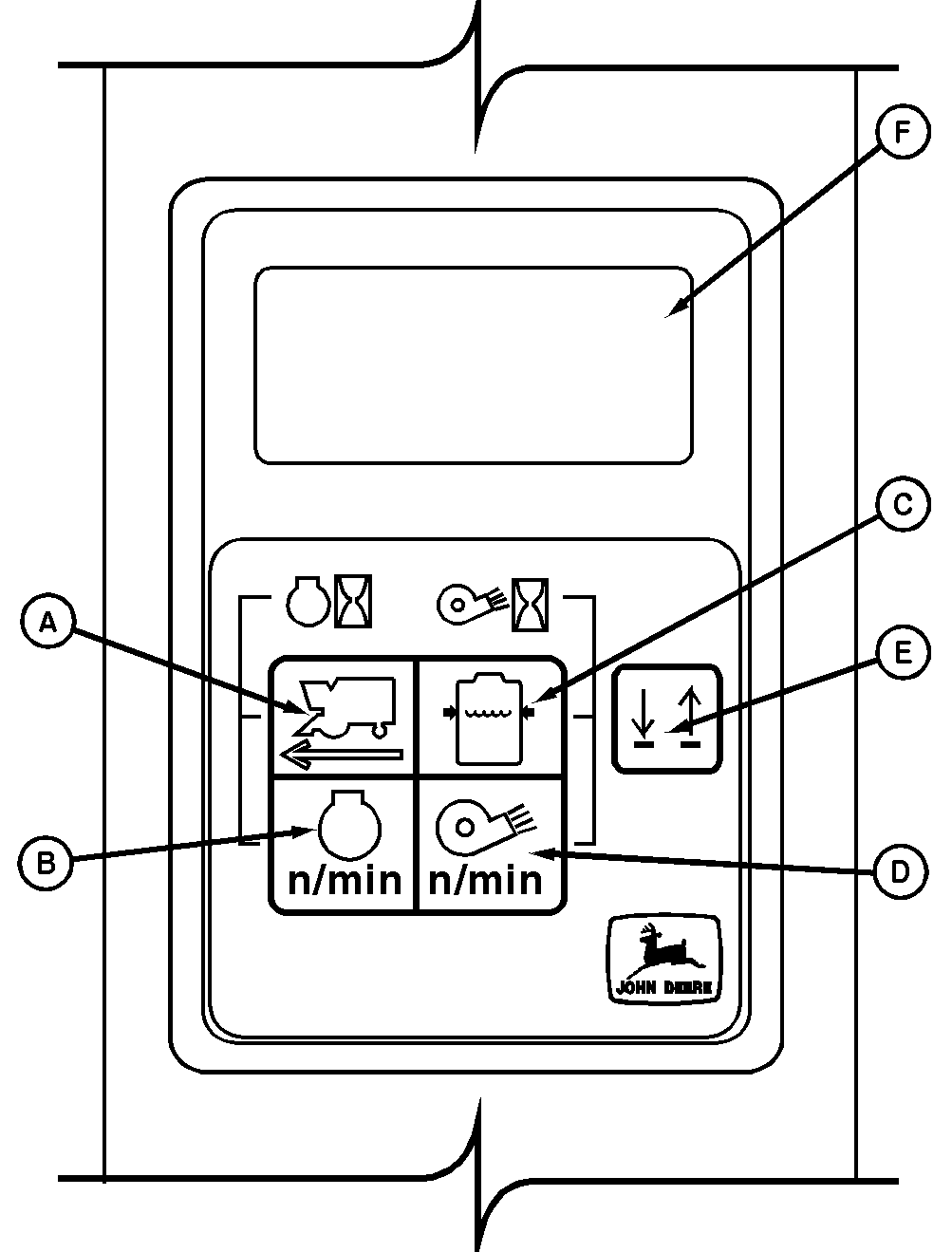

Digital tachometer consists of four "touch" switches (A, B, C, D) that display six different kinds of data.

This data consists of ground speed, engine rpm, solution pressure, fan speed values and engine and fan hours of machine.

Line select switch (E) selects between top and bottom line on display panel (F).

Use hour readings to help schedule regular service and lubrication.

NOTE: Digital tachometer displays message "SEU1" after each 50 hours of engine operation. This service interval display message is designed to help schedule regular lubrication and maintenance. (See Clearing 50 Hour Service Code in this section).

A-Ground Speed
B-Engine RPM
C-Solution Pressure
D-Fan Speed
E-Line Select
F-Display Panel

OUO6043,000140F -19-04JUN01-1/1
