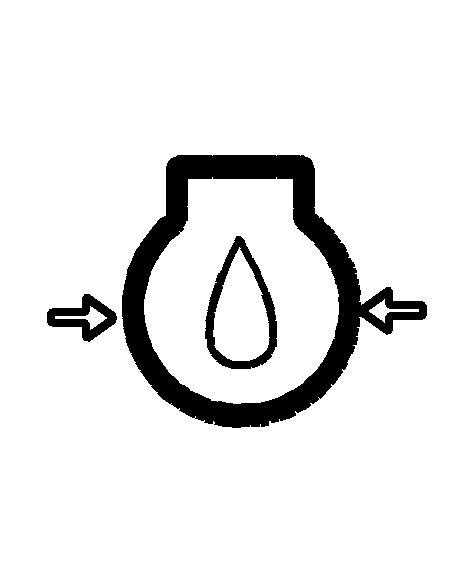

Low Engine Oil Pressure Indicator

IMPORTANT: Prevent possible engine damage. If engine oil pressure indicator comes on while operating, stop engine immediately.

Engine oil pressure indicator will come on and a pulsed warning alarm sounds when engine oil pressure is low. If indicator comes on, stop engine immediately. Determine and correct cause before restarting engine. (See Troubleshooting section).

Indicator will glow when engine is not running and key switch is turned to ON position.

NOTE: Cold oil, low oil level or extreme off-level operation may cause indicator to light.

(To test indicator light bulb for proper operation, see Indicator Display Panel Bulb Check in this section).

OUO6043,0001418 -19-04JUN01-1/1
