After 20 Hours

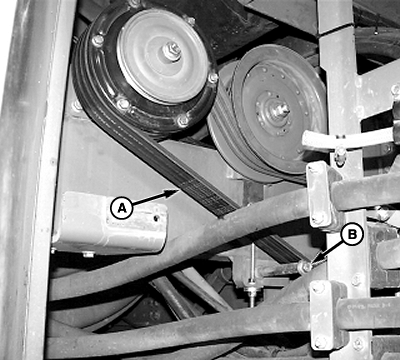

IMPORTANT: Adjust cotton fan drive belt (A) tension and check guide (B) adjustment at location (C). Failure to maintain proper tension will significantly reduce belt life.

(See Adjusting Cotton Fan Belt And Guides in Air System Section).


A-Cotton Fan Drive Belt
B-Guide

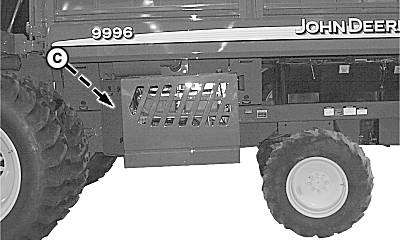

C-Location

N56272

Solution Pump Removed For Clarity

N67137

OUO6043,000142D -19-10SEP04-1/1
