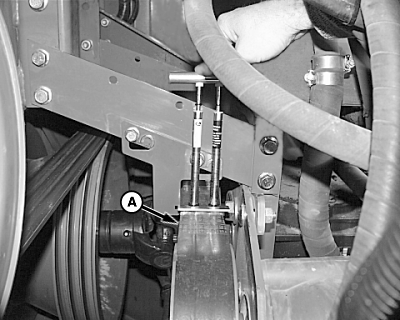

Check hydraulic pump drive belt (A) tension at location (B). Adjust if necessary. (See Checking And Adjusting Hydraulic Pump Drive Belt Tension in Chassis section).
A-Hydraulic Pump Drive Belt B-Location
OUO6043,000142E -19-10SEP04-1/1
