Filling Fuel Tank

causym CAUTION: Fuel is highly flammable and can cause serious injury or death to you or others if it spills from fuel tank and is ignited. Do not refuel machine while smoking or when near an open flame or spark. Always stop engine before refueling. Fill fuel tank outdoors. Be sure to replace fuel fill cap and rear screen after filling. Always clean up spilled fuel.

1. If engine has not been operated for a long time, remove fuel tank plug and allow any accumulated water to drain out. Replace plug.

TS202

OUO6043,0001435 -19-10SEP04-1/2

2. Remove fuel fill cap (A).

3. Remove fuel screen from tank neck and clean if needed. Replace screen.

NOTE: View sight gauge (B) while fueling to help prevent overfilling.

4. Fill tank with proper grade of diesel fuel. (See Diesel Fuel in Fuels, Lubricants And Coolants section).

5. Replace fuel fill cap.

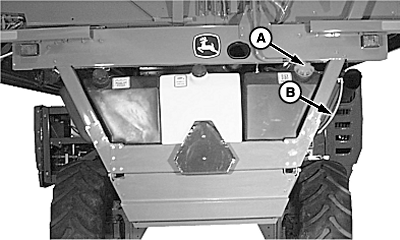

A-Fuel Fill Cap
B-Sight Gauge

N67584

OUO6043,0001435 -19-10SEP04-2/2
