Extending and Retracting Rear Warning Lights

causym CAUTION: Adjustment of rear warning lights is important for machine to be transported safely. Injury or death to you or others can result if rear warning lights are not positioned correctly.

If machine is set up with dual wheels, rear warning lights must be extended. Leave warning light in retracted position (A) for all other configurations.

Perform the following procedure to place rear warning light in extended position.

1. Cut tie band (B) retaining light wire to channel.

2. Remove hardware (C).

3. Slide channel outward to extended position (D) and install previously removed hardware in locations (E).

4. Tie band light wire at location (F).

5. Repeat procedure on opposite side.

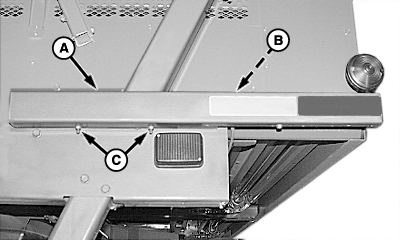

N58967

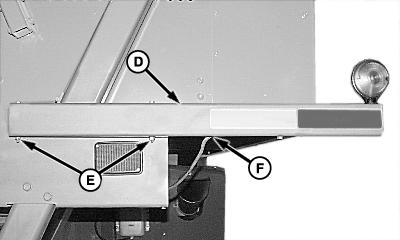

N58968


A-Retracted Position
B-Tie Band
C-Hardware
D-Extended Position
E-Hardware
F-Tie Band
