Lowering Row Units

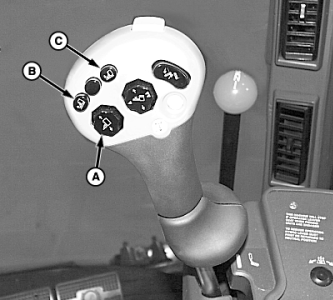

Press bottom of raise/lower all units button (A) on hydro lever to lower units. This will activate the header height control system when the units are engaged.

The header height control system will maintain unit-to-ground clearance. (See Header Height Control section for proper operation and adjustments).

Press raise left-hand unit button (B) or raise right-hand unit button (C) to raise corresponding row units (units mounted on left-hand unit frame and right-hand unit frame) as needed to avoid obstacles. Press and release bottom of raise/lower all units button (A) to return row units to previous height.

A-Raise/Lower All Units Button
B-Raise Left-Hand Unit Button
C-Raise Right-Hand Unit Button

OUO6043,0001446 -19-04JUN01-1/1
