Unloading Basket

causym CAUTION: To avoid serious injury or death to you or others, DO NOT unload basket if the following conditions exist:

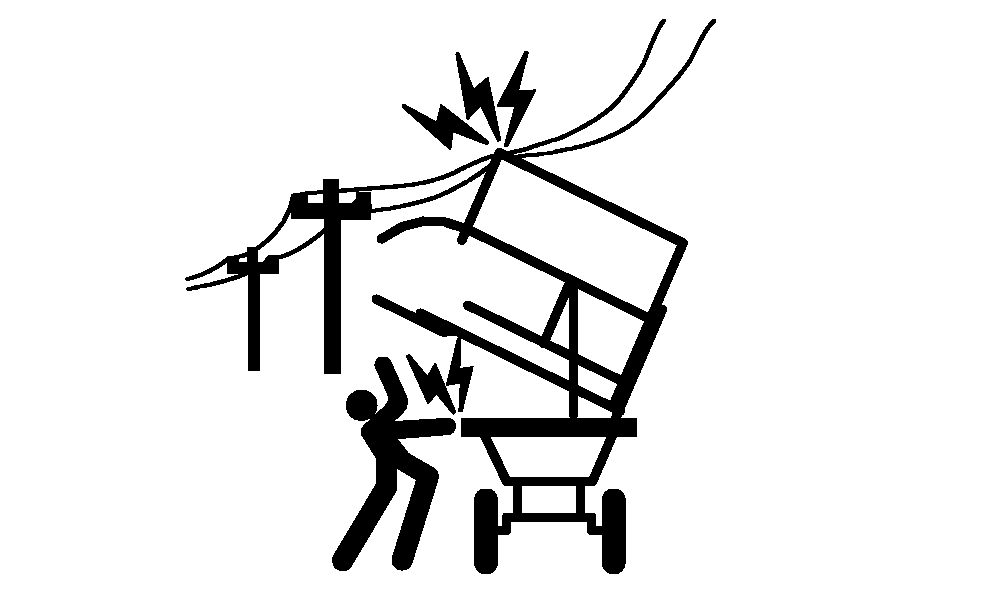

Picker can come in contact with electrical wires.

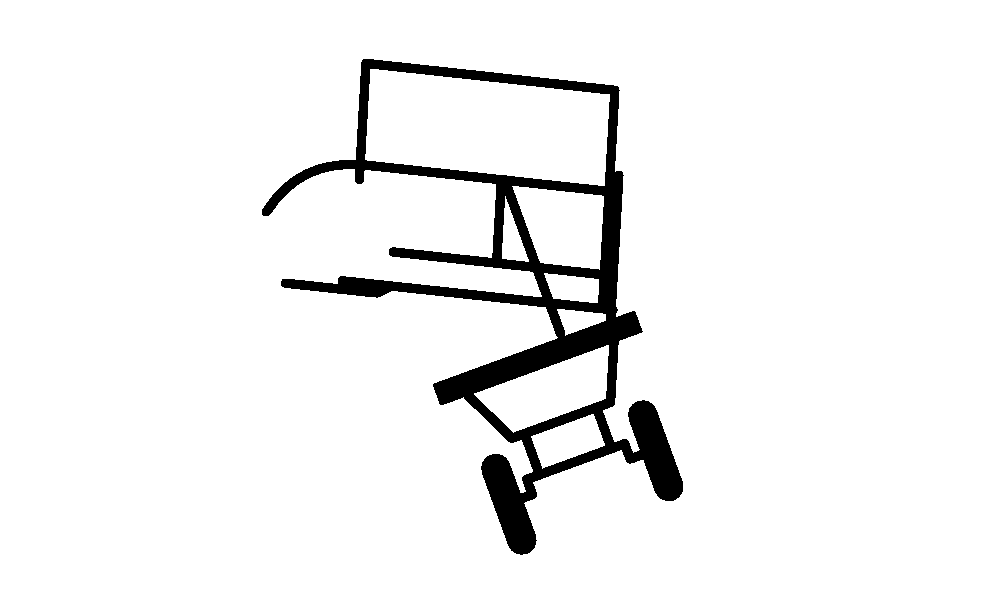

Picker is on a slope.

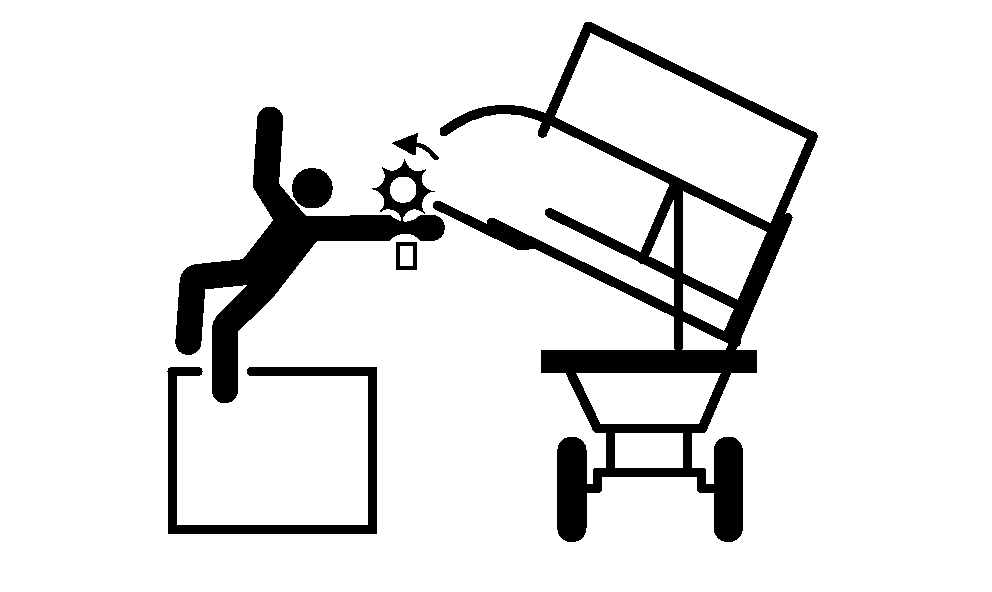

Anyone can come in contact with basket conveyor.

Anyone is around picker.

N58969
N58970
N58971

OUO6043,0001449 -19-04JUN01-1/2

1. Reduce engine speed to idle.

2. Disengage row units and fan.

3. Move picker into position.

4. Increase engine speed to fast throttle.

5. Press top of raise/lower basket and operate conveyers button (A) to raise basket and open basket door to desired position.

6. If necessary, use open/close basket door button (B) to change door height without changing basket height.

7. Press left-hand side of raise/lower basket and operate conveyers button (A) to activate door conveyer or press right-hand side of button to activate door and floor conveyer.

8. After unloading, press bottom of open/close basket button (B) to raise/close door. Press bottom of raise/lower basket and operate conveyers button (A) to lower basket.

9. Reduce engine speed.

10. Perform periodic basket service. (See Lubrication And Maintenance section).

N57683


A-Raise/Lower Basket and Operate Conveyers Button
B-Open/Close Basket Door Button

OUO6043,0001449 -19-04JUN01-2/2
