Every 400 Hours of Operation

1. Drain hydraulic/hydrostatic oil. Replace hydraulic/hydrostatic spin-on oil filter (A).

2. Remove hydro module rear panel and remove reservoir cover plate (B). Clean internal reservoir strainer and replace filters. Install cover plate and panel.

3. Fill reservoir. (See Hydraulic/Hydrostatic Oils in Fuels, Lubricants And Coolants section for proper oil specifications, and Specifications section for system refill capacity).

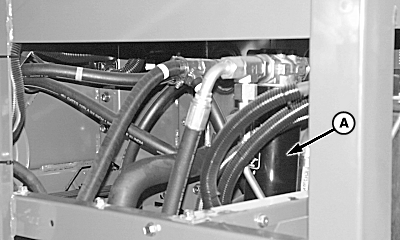

A-Spin-On Hydraulic Filter

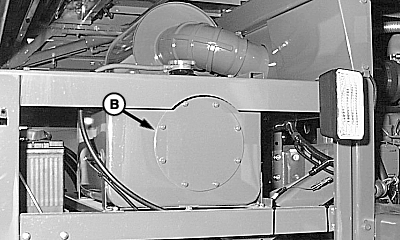

B-Reservoir Cover Plate

N67580
N57243

OUO6043,0001453 -19-24MAY05-1/3

4. Remove final drive fill plug (A) and check final drive lubricant level. Lubricant level must come within 6 mm (1/4 in.) of bottom of fill hole.

5. Fill as needed with proper lubricant. (See Transmission And Final Drive Lubricants in Fuels, Lubricants And Coolants section for proper specifications). (See Specifications section for oil capacity).

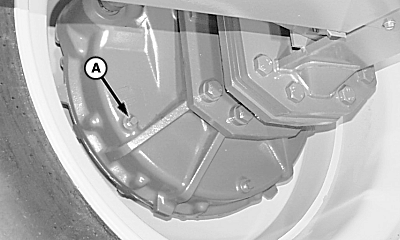

A-Final Drive Fill Plug

N57228

Viewed From Under Machine

OUO6043,0001453 -19-24MAY05-2/3

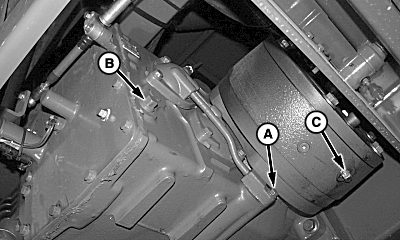

6. Remove block (A) from transmission and drain plug (C) from both brake housings and drain transmission oil. Clean or replace strainer. Install block and drain plugs. Remove fill plug (B). Fill transmission until fluid is level with bottom of plug hole. Operate machine for one minute minimum (multi-function control handle must be stroked) and recheck oil level. See same sections as above for specifications and capacities.


A-Block
B-Fill Plug
C-Drain Plug (2 used)

N69792

OUO6043,0001453 -19-24MAY05-3/3
