Preparing Inspection Bypass System

causym CAUTION: Be sure park brake switch is engaged before using inspection bypass operation. The unexpected movement of the machine can cause serious injury or death to you or others.

1. Engage park brake switch.

2. Place transmission in neutral.

3. Operate engine at idle.

4. Engage tether control switch (A).

NOTE: The speed of the units can be varied within the specified range of the decal (C). To increase unit speed, move hydro lever towards the front of the decal range. To decrease unit speed, move hydro lever towards the rear of the decal range. Unit rotation will stop if hydro lever is moved beyond the front of the decal range.

5. Move hydro lever (B) into inspection bypass position (C).

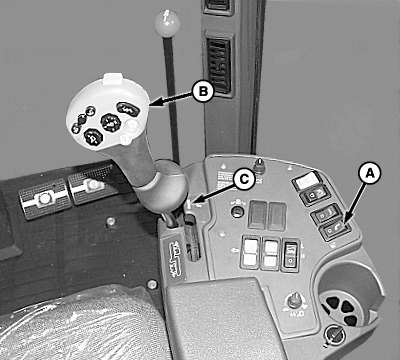

N57651


A-Tether Control Switch
B-Hydro Lever
C-Bypass Position

OUO6043,0001458 -19-19MAY05-1/1
