Cleaning Strainer

Recommended Service Interval
Clean Solution Strainer Every 10 Hours

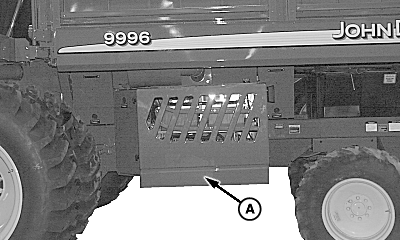

1. Open hydro module door (A) to access strainer.

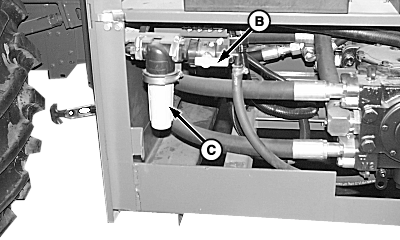

2. Close valve (B).

3. Firmly grasp strainer bowl (C) and turn counterclockwise to remove.

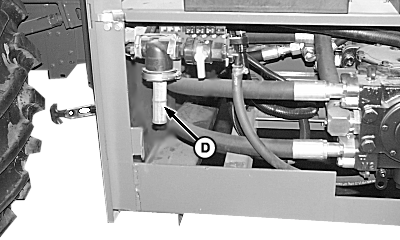

4. Remove and clean 100 mesh strainer (D) daily.

5. Install in reverse order of removal.


A-Hydro Module Door
B-Valve
C-Strainer Bowl
D- Mesh Strainer

N67140
N67484
N67485

OUO6043,000146F -19-10SEP04-1/1
