Operating Basket Dump Cylinder Locks

causym CAUTION: The basket is heavy and can cause serious injury or death to you or others should it fall. Engage both front and rear basket dump cylinder locks BEFORE working under basket.

1. Fully raise basket.

2. Engage both front and rear cylinder locks (A).

3. Lower basket onto cylinder locks before working under basket.

4. To lower, raise basket, disengage and place locks in storage position. Stand clear while basket is lowered.


A-Cylinder Locks

TS261

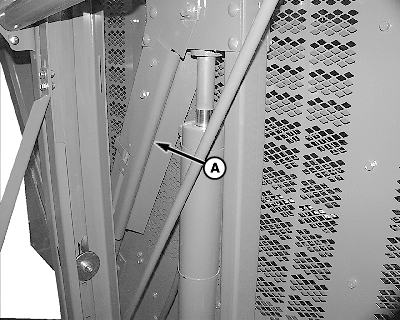

N57757

Front Lock

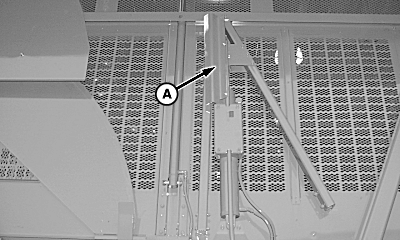

N69758

Rear Lock
