Cleaning/Replacing Onboard Lubrication System Filters

Recommended Service Interval
Clean/Replace Lubrication System Filters Every 250 Hours



IMPORTANT: Internal machine damage can occur. Keep the cap clean and ON the fitting when not filling the onboard lubrication tank to prevent system contamination.

1. Open hydro module door on left-hand side of machine.

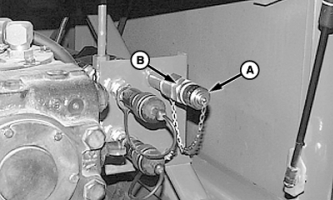

2. Remove cap (A) and outer coupler fitting (B).

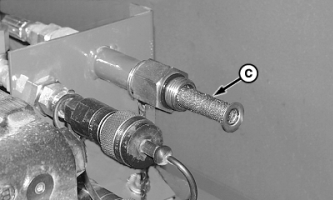

3. Remove filter (C) and clean in solvent or replace if damaged.

4. Install filter, fitting and cap in reverse order of removal.

N58937
N58938


A-Cap
B-Coupler Fitting
C-Filter, 40 Mesh

OUO6043,0001486 -19-10SEP04-1/2

5. Remove cover from lubrication/moistener system control box behind cab.

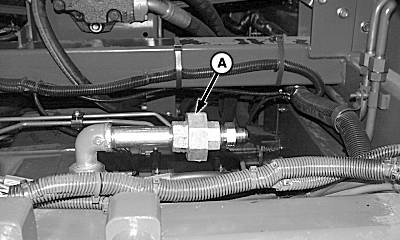

6. Disconnect union fitting (A).

7. Remove washers (B) and 40 mesh filter (C).

8. Clean filter in solvent or replace if damaged.

9. Reassemble filter, washers and union in reverse order of removal.

10. Install control box cover.


A-Union Fitting
B-Washers
C-Filter, (40 mesh)
