Replacing/Cleaning Precleaner Filter
|
|
|||||
OUO6043,0001497 -19-28APR05-1/2 |
|

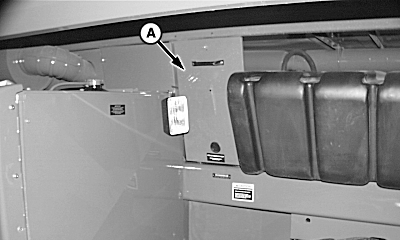

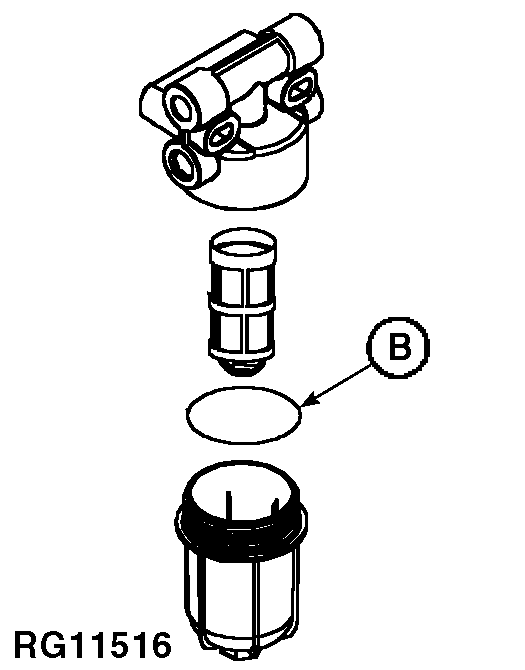

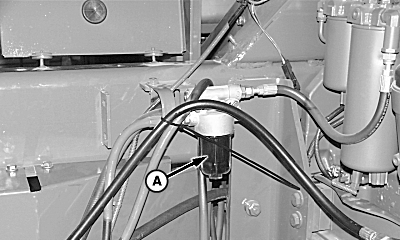

NOTE: Do not clean fuel precleaner and change primary and secondary fuel filters at the same time. Doing so will make it difficult to restart the machine. Perform this procedure, then run the engine before changing the primary and secondary fuel filters. To prevent fuel from draining back, service precleaner filter with fuel level below 1/4 or plug/pinch supply line. Clean fuel precleaner filter if buildup is visible on filter screen or if service code is displayed on cornerpost. 1. Start engine and run 3 to 5 minutes at low idle if machine had not been previously running.2. Shut OFF engine. 3. Thoroughly clean fuel precleaner assembly and surrounding area. 4. Remove precleaner bowl (A) using a 25 mm (1 in.) socket on bottom of bowl. 5. Clean filter screen and precleaner bowl. Inspect o-ring (B). 6. Install screen and tighten precleaner bowl. 7. Start engine and run 3 to 5 minutes at low idle. |
|
OUO6043,0001497 -19-28APR05-2/2 |
