Adjusting Rotary Screen Trash Expeller

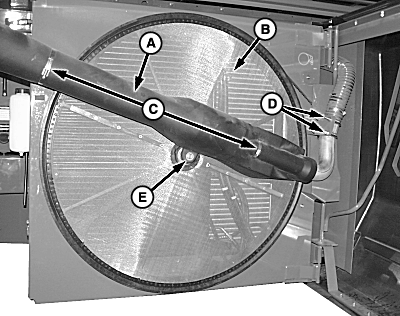

Remove all dirt and trash buildup between trash expeller (A) and rotary screen (B). Verify clearance between trash expeller and rotary screen is adjusted to specification.

Specification

Trash Expeller-to-Rotary Screen -Clearance

12 mm

(0.5 in.)

To adjust clearance between trash expeller and rotary screen, loosen hose clamps (C), adjust pipe clamps (D) of inlet steel pipe. If necessary, add or remove washer(s) (E) at rotary screen axle. To complete adjustment, tighten in reverse order.

A-Trash Expeller
B-Rotary Screen
C-Hose Clamps
D-Pipe Clamps
E-Washer(s)
