Jacking Up Front Axle

causym CAUTION: Machine is heavy and can fall or roll causing serious injury or death to you or others. Use a jack with a minimum jacking capability of 13,600 kg (15 tons). Machine must be on a flat, level surface with transmission lever in neutral, park brake switch is engaged and key removed.

IMPORTANT: Machine damage can occur. Jack up machine only at designated jacking locations.

1. Position machine on a flat, level surface.

2. Position jack on a solid, flat surface beneath jacking plate (A).

causym CAUTION: Machine is heavy and can fall or roll causing serious injury or death to you or others. Clear all bystanders away from machine before jacking up machine.

3. Clear all bystanders away from machine, then using jack, raise machine only enough to change or repair tire.

4. Change or repair tire. Tighten wheel bolts to specification.

Specification

Drive Tire Wheel Bolts -Torque 610 N·m  (450 lb-ft)
Non-Powered Guide Wheel Bolts -Torque 312 N·m  (230 lb-ft)
Power Rear Axle Wheel Bolts -Torque 610 N·m  (450 lb-ft)

5. Lower machine to ground.

TS229
N57376

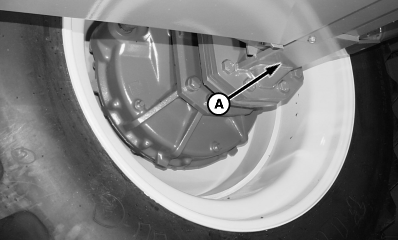

A-Jacking Plate

OUO6043,00014A2 -19-19MAY05-1/1
