Preparing Machine for Storage

If machine will not be operated for 30 days or more:

1. Clean machine thoroughly inside and out to prevent rust.

2. Clean spindles.

IMPORTANT: Lubricate row units thoroughly after washing to protect against corrosion.

3. Wash row units thoroughly, inside and outside. Make sure they are thoroughly dry. Spray entire picking mechanism with a rust-preventive oil.

4. Lubricate machine completely. Grease threads on bolts used for adjustments. Run row units until all parts are thoroughly lubricated.

OUO6043,00014A5 -19-04MAY05-1/3

IMPORTANT: Solution pump damage can occur. Do not operate pump dry.

5. Drain and refill moistener system:

a. Drain moistener system tank and lines by removing strainer (A), opening valve (B) and opening both bleed valves on pump. Replace strainers and close bleed valves.

b. Following manufacturer's directions, mix RV antifreeze (environmentally safe antifreeze) at the correct ratio to protect moistener system down to lowest expected temperature.

c. Pour appropriate mixture of RV antifreeze into moistener system tank. Operate system to circulate antifreeze through lines and nozzles.

d. Remove solution pump belt.

6. Repaint where necessary.

7. Support row units with blocks.

8. Block picker to take load off tires. Do not deflate tires. If picker is stored outside, remove wheels and tires and store them in a cool, dark place. Do not store tires in contact with blacktop or other oil stabilized surfaces.

9. Loosen all belts.

10. Clean oil cooler.

11. Order repair parts for next season.

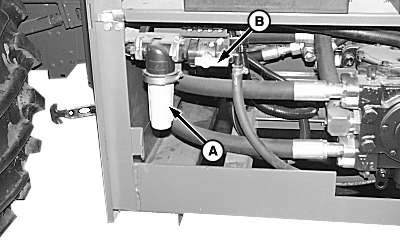

N67574


A-Strainer
B-Valve

OUO6043,00014A5 -19-04MAY05-2/3

12. Remove basket door cylinder stops from storage positions (A) and install on front and rear basket (B) door cylinders, using quick lock pin.


A-Storage Positions
B-Rear Basket Door Cylinder-Stop Installed

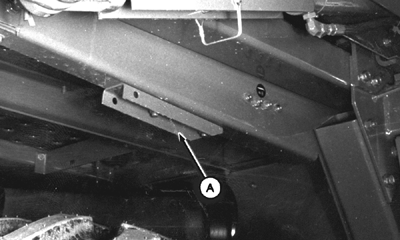

N42176NA

Front Storage Location

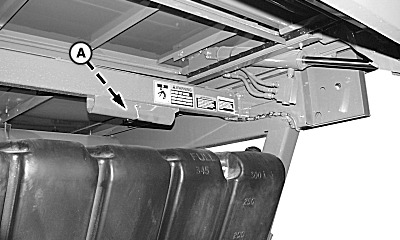

N69796

Rear Door Storage

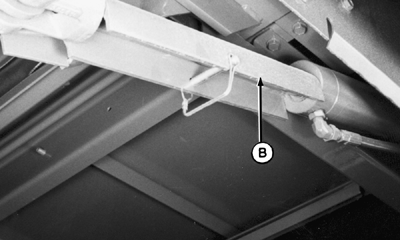

N42176LY

Rear Basket Door Cylinder

OUO6043,00014A5 -19-04MAY05-3/3
