Removing And Cleaning Roof Air Inlet Panel
| Recommended Service Interval |
| Remove And Clean Roof Air Inlet Panel |
Annually |
1.
Remove six plugs and screws (A).
2.
Remove panel (B). Air is brought in through the left-hand side panel only.
 CAUTION:
Compressed air can cause dust and debris to become airborne which can cause serious injury to you or others by striking eyes or unprotected areas. Reduce compressed air to less than 210 kPa (2.1 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders. Guard against flying chips and wear personal protection equipment including eye protection.
3.
Clean with compressed air or water. Re-install.
|

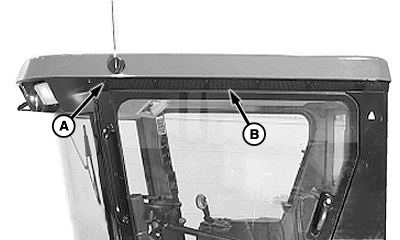

A-Plugs And Screws
B-Panel
|
