OMN300304: 9996 Cotton Picker(N09996X018001- ), Block File: OUO6043_00014E4_19

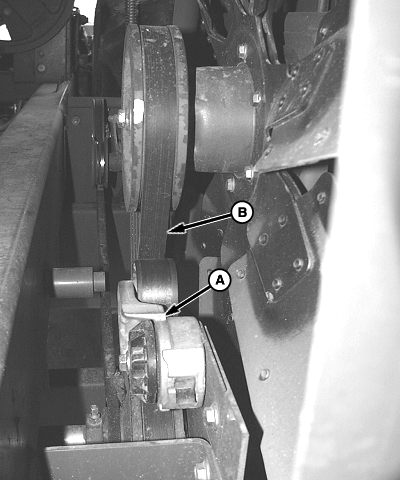

1. Insert breaker bar in square of tensioner (A).

2. Pull on breaker bar to relieve tension on belt (B).

3. Remove belt from fan sheave and slowly release tensioner.

A-Tensioner
B-Belt

OUO6043,00014E4 -19-18APR02-1/3

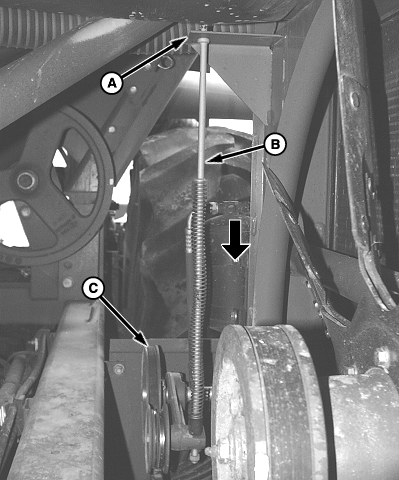

4. Remove spring locking pin (A).

5. Pull down on rotary screen idler arm rod (B) and move it to the side of bracket to release tension on belt (C).

A-Spring Locking pin
B-Rod
C-Belt

OUO6043,00014E4 -19-18APR02-2/3

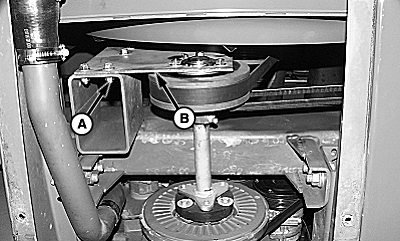

6. Remove three cap screws (A) and rotate shaft support (B) down.

7. Remove belt and replace in reverse order of removal.

A-Cap Screws (3 Used)
B-Shaft Support

View From Below Machine

OUO6043,00014E4 -19-18APR02-3/3
