Access Interior Of Basket

CAUTION: A fall from basket door can cause serious injury or death. Use caution when climbing or walking on or around basket and basket door.

1. Place machine on level ground.

2. Completely raise basket extension using basket extension switch (A). Verify latches in all four corners have engaged. Lower basket onto latches.

3. Completely lower basket door using basket door button (B).

4. Turn off engine and remove key.

5. Using a suitable ladder, climb onto basket door and into basket.

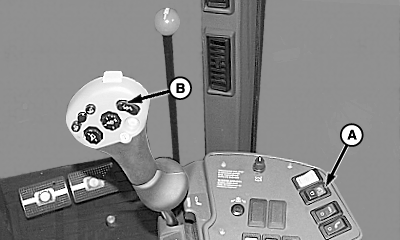

A-Basket Extension Switch
B-Basket Door Button

OUO6043,00014F3 -19-22OCT01-1/1
