Using Basket Handrails

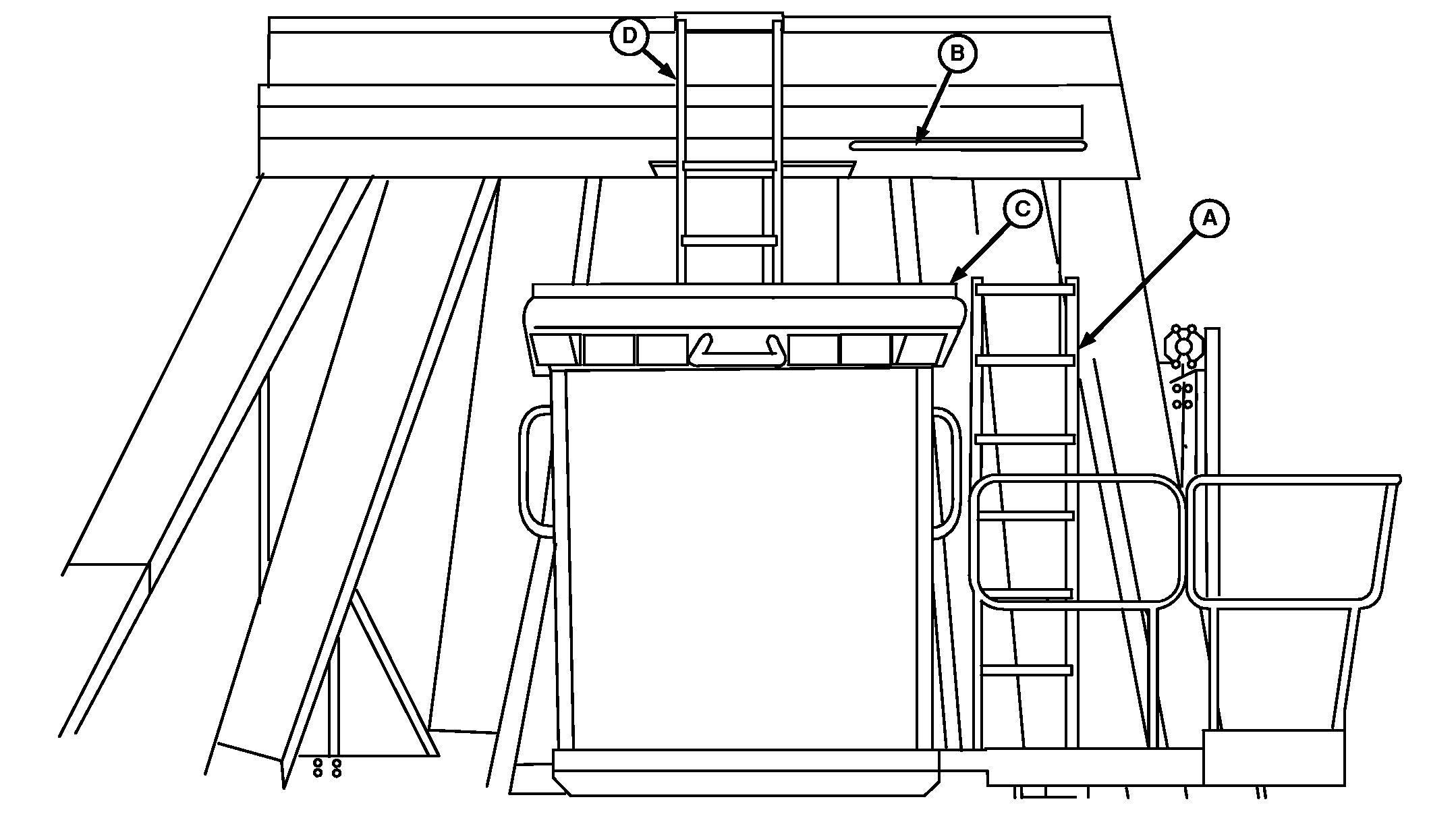

N60262


A-Ladder


B-Handrail


C-Platform


D-Hood Ladder

causym CAUTION: A fall from the machine can cause serious injury or death. Always use handrails and use extreme caution when climbing or walking on or around machine to avoid injury.

1. Carefully climb to top of basket using ladder (A), handrail (B), platform (C), and hood ladder (D).

OUO6043,00014F4 -19-22OCT01-1/2

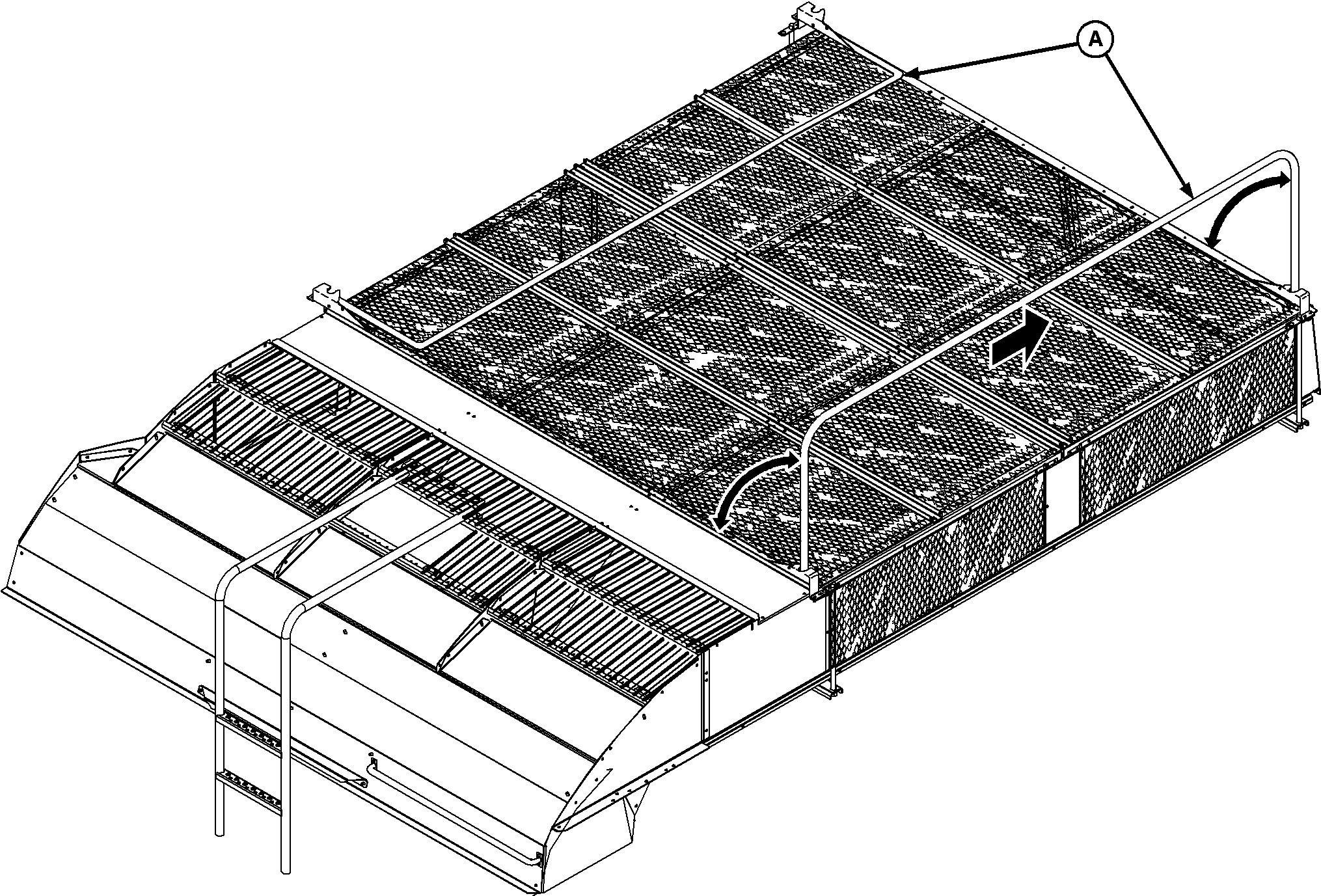

N59591

2. Lift handrails (A) until completely engaged in latches.

3. To lower, slide handrail towards rear of machine and then down.

OUO6043,00014F4 -19-22OCT01-2/2
