Adjust Operate Time Of Automatic Basket Compactor Augers-Address 32

NOTE: This should be set to a minimum in low yielding or muddy conditions.

The automatic basket compactor augers operate for a default time of 20 seconds when the basket full sensor is on. This time can be adjusted between 10 and 60 seconds, in increments of 5 seconds. Perform the following procedure to adjust operate time.

OUO6043,000156B -19-19MAY05-1/5

1. Park machine on a flat level concrete surface. Engage park brake switch and turn off engine. Turn off all accessories and verify fan/units switch is off.

2. Press and hold line select switch (A) on tachometer. Turn on key switch and start engine. Release line select switch.

3. Tachometer will now be in diagnostic mode as shown.


A-Line Select Switch

N56366

OUO6043,000156B -19-19MAY05-2/5

4. Press and release line select switch (A) until tachometer displays as shown.


A-Line Select Switch

N56367

OUO6043,000156B -19-19MAY05-3/5

5. Press and release fan speed switch (A) until tachometer displays as shown.


A-Fan Speed Switch

N56368

OUO6043,000156B -19-19MAY05-4/5

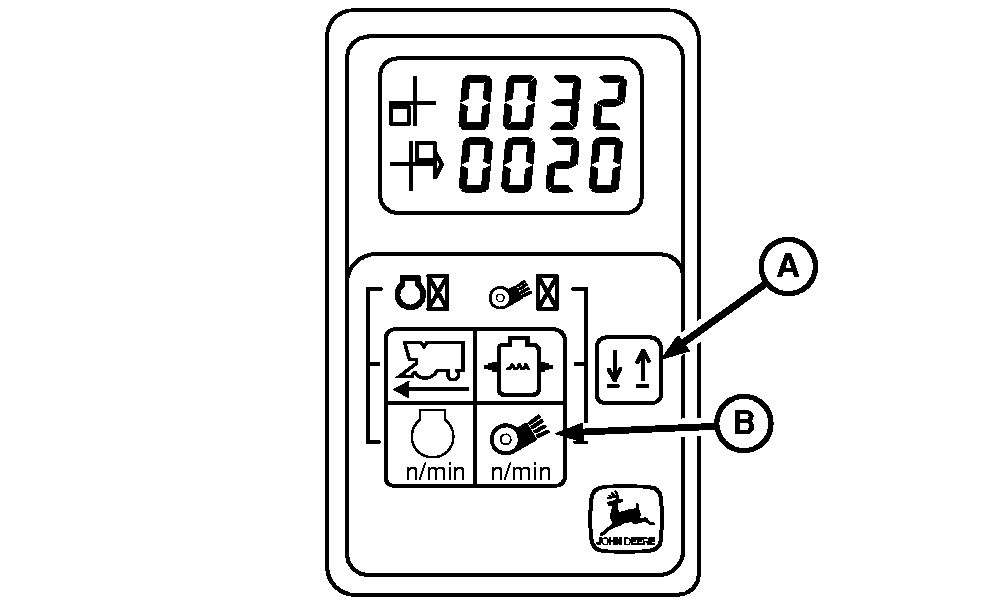

6. Press line select switch (A) until address 32 is shown on top line of display.

7. Press fan speed switch (B) to change auger operate time shown on lower line of display in 5 second increments.

8. Turn key switch off to retain selected operate time.


A-Line Select Switch
B-Fan Speed Switch

N58978

OUO6043,000156B -19-19MAY05-5/5
