Practice Safe Maintenance

Unauthorized modifications to the machine may impair the function and/or safety of the machine. Unauthorized modifications may also affect machine life and void warranties.

Before working under units, fully extend unit lift cylinders and release safety stops cables (A) on both sides of machine. Verify unit lift arm cylinder stops are in place on both sides.

DO NOT lubricate or adjust picker when it is in motion.

DO NOT check the water level in a hot radiator by removing cap. Check overflow tank.

Shut off engine and remove key when working on the machine unless specifically instructed to leave engine running.

Replace all guards and shields removed for servicing.

DO NOT attempt to remove an obstruction unless:

• units are disengaged, fully lowered or row unit lift arm cylinder stops are in place.
• transmission lever is in neutral
• hydro lever is in neutral
• park brake switch is engaged
• ignition is off
• switch key is removed

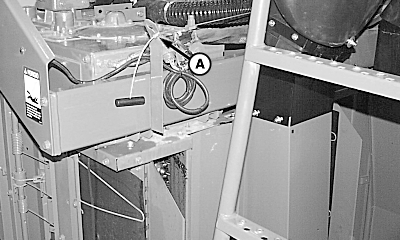

A-Safety Stop Cables

OUO6092,000038F -19-19MAY05-1/1
