Install Finishing Blade Scraper

1. Remove 1/2 x 3 in. cap screw, washer and lock nut from last scraper gang. Retain washer and lock nut.

2. Install finishing blade scraper (A) on scraper tube with 1/2 x 3-1/2 in. cap screw (B), washer, and lock nut previously removed.

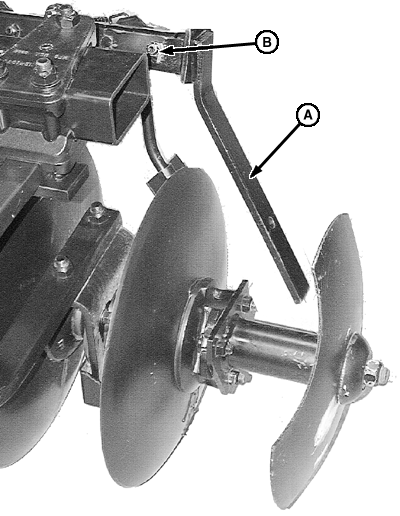

A-Finishing Blade Scraper
B-Cap Screw

N50220

AG,OUO6043,223 -19-28JAN00-1/1
