OMN300481: 637 Regular, Rock, BlackLand, and WheatLand Disks(N06370X004000- ), Block File: NXH8_609OM40_XD_19

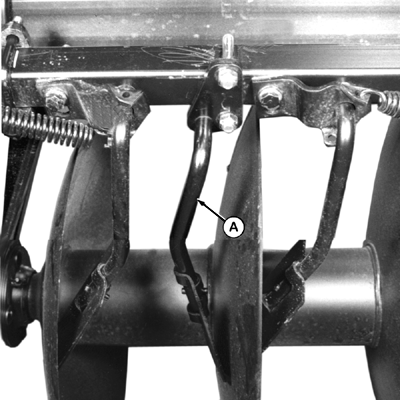

Convex scraper (A) attaches to scraper tube and is used to prevent soil build-up on back side of blade.

For machines with rigid standards maintain a 3 mm (1/8 in.) gap between scraper and blade.

For machines with C-spring standards maintain a 6.4 mm (1/4 in.) gap between scraper and blade.

A-Scraper

NXH8,609OM40,XD -19-30OCT06-1/1
