Install C-Spring Standard Bearing Wear Guard
1.

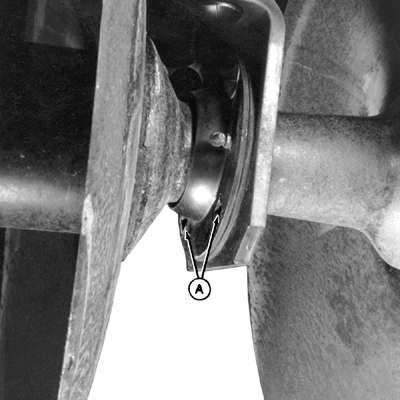

Remove existing hardware (A) from bearing.
A-Existing Hardware
|
Hardware Removed-Rear View
|
|
|
NXH8,63730,1AO -19-30NOV98-1/2
|
|
2.

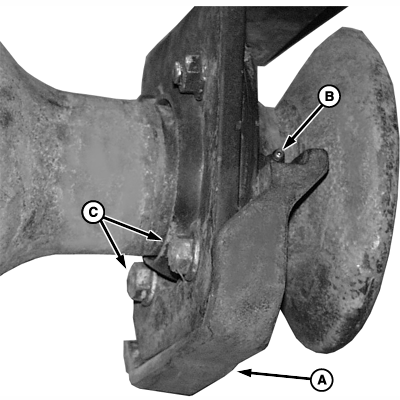

Align bearing guard (A) with grease fitting (B). Attach bearing guard to standard with two 1/2 x 1-3/4 in. Grade 5 carriage bolts and flange lock nuts (C). Tighten nuts to specification.
Specification
|
Flange Lock Nuts
-Torque
|
52 N·m (40 lb-ft)
|
A-Bearing Guard
B-Grease Fitting
C-Flange Lock Nuts, 1/2 in. (2 Used)
|
|
|
|
NXH8,63730,1AO -19-30NOV98-2/2
|
|
