Install Knock Out Scraper for C-Spring Standard

Knock out scraper attaches to rear gang tube and is used to prevent soil buildup.

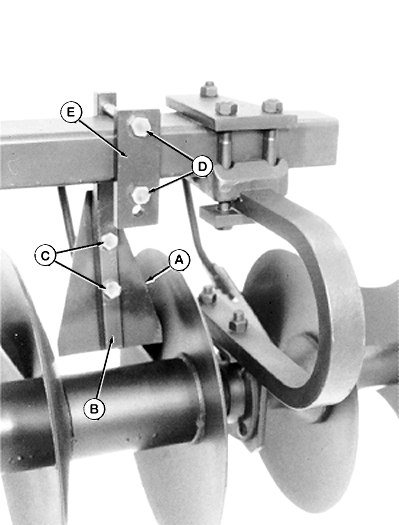

1. Attach blade (A) to arm (B) with 5/8 x 2-1/2 in. cap screws and lock nuts (C).

2. Attach arm to rear gang tube with strap (E) and 5/8 x 8 in. cap screws and lock nuts (D).

3. Set scraper in highest setting.


A-Blade
B-Arm
C-Cap Screws, 5/8 x 2-1/2 in. and Lock Nuts (2 Used)
D-Cap Screws, 5/8 x 8 in. and Lock Nuts (2 Used)
E-Strap
