Positioning Jacks for Transport
|
|
IMPORTANT: Avoid damage to front jack. Make sure jack handle is located on top of jack when in transport position. |
1. After hitching machine to tractor, raise front jack (A) and pin it in transport position. Position jack so jack handle is located on top. |
NXH8,M60930,SZ -19-23JUN98-1/2 |
|

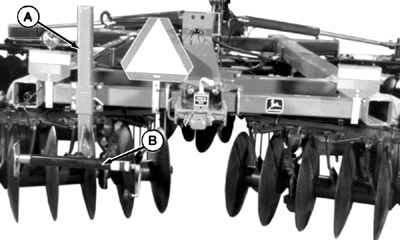

2.
If machine has a rear stand (A), pin stand in highest position. Rotate rear jack (B) and pin in transport position.)
|
|
NXH8,M60930,SZ -19-23JUN98-2/2 |
