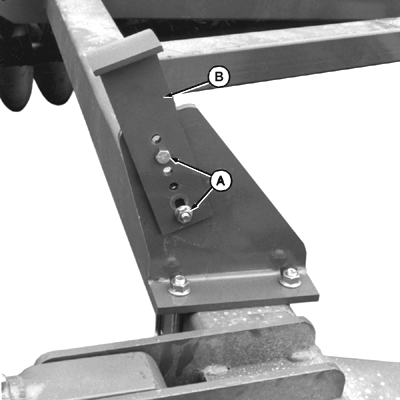

Adjusting Cylinder Rods/Stops for Wing Fold Operation 10.6-11.5 M (35 Ft-37 Ft 10 In.)1. Remove cap screws (A) and nuts. Remove front stop (B) from brackets.
2. Fold wing and relieve pressure by positioning SCV lever in FLOAT position with tractor engine running.
|
|
CAUTION:
Unexpected movement of machine can cause serious injury or death to you or others. Keep people away from machine when placing tractor control lever in FLOAT position.
NXH8,M60960,K12 -19-23JUN98-1/2 |
|
3.
Loosen cap screws (A) several turns.
IMPORTANT: Do not adjust wing cylinders to exert excessive force on wings. Do not pull cylinder rod out of cylinder more than 2 mm (1/16 in.). 4. Using open-end wrench, adjust cylinder rod (B) until front wing stop rests on frame and approximately 2 mm (1/4 in.) of rod chrome is exposed outside of cylinder rod guide. 5. Adjust other wing cylinder. Tighten cap screws. 6. Attach front wing stop in longest position where two holes line up using 1/2 in. cap screws, flat washers and nuts. Tighten nuts. 7. Lower wing to floor. 8. Reposition wing stop in next LONGER hole position. 9. Fold wings and check adjustment of front and rear stops. All four should touch frame (front first then rear.) |
|
NXH8,M60960,K12 -19-23JUN98-2/2 |
