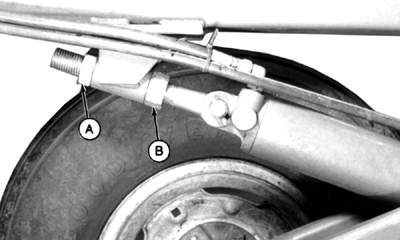

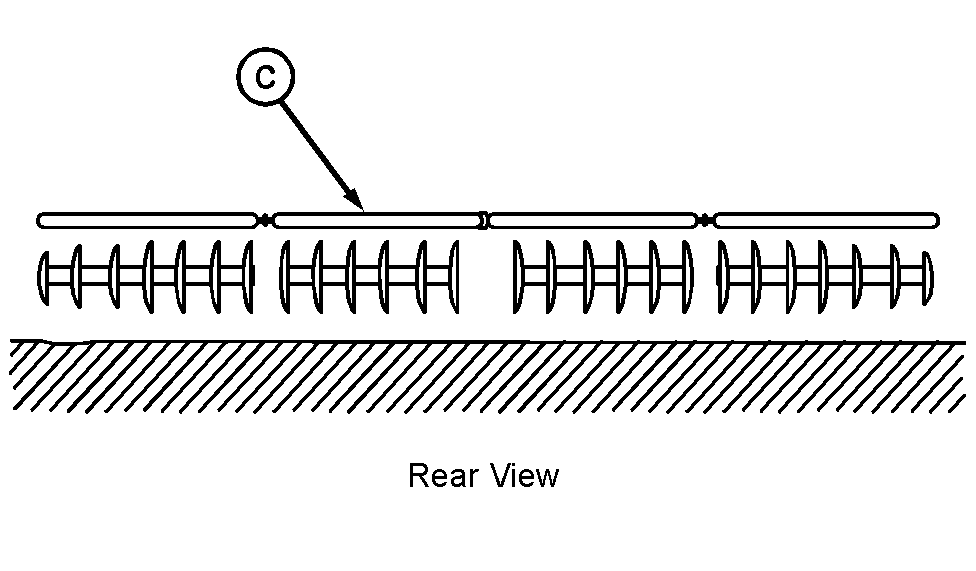

Leveling Wing Frames to Main Frame-Folding Machines Only1. Raise machine to transport position and hold tractor control lever in "raise" position for five seconds after machine stops rising. This rephases cylinders.2. Lower machine until blades are approximately 51 mm (2 in.) off ground. 3. Stand behind machine. Adjust eyebolt on each wing depth control cylinder until gang tubes (C) are level side-to-side across width of machine. 4. To adjust wing wheels, loosen jam nut (A) and turn nut (B). Tighten jam nut. NOTE: One turn of nut (B) is equal to 8 mm (3/10 in.) of height change of wheel.
|
|
