Engaging Hydraulic Cylinder Transport Lock-Up Valve

On a FOLDING machine, CLOSE hydraulic cylinder transport lock-up valve (A) during transport.

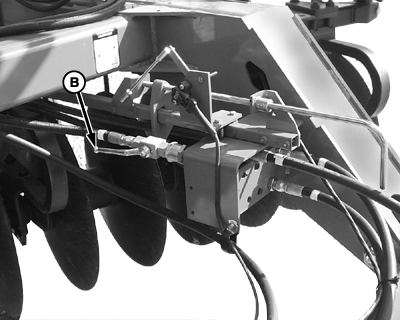

For field operation, OPEN hydraulic cylinder transport lock-up valve (B).

A-Lock-up Valve CLOSED Position
B-Lock-up Valve OPEN Position

NXH8,M63725,AA1 -19-19SEP06-1/1
