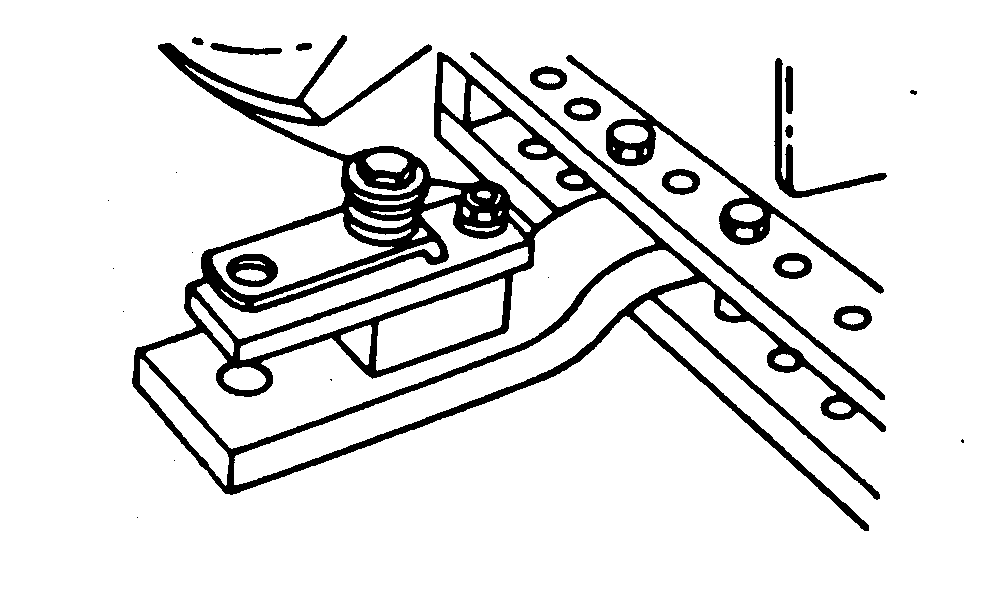

Positioning Tractor Drawbar for Transport

Pin tractor drawbar tightly in center position.

NOTE: Two-wheel drive tractors should be pinned tightly in center position at all times.

For Trac-Tractors and four-wheel drive tractors, leave one hole clearance on each side of drawbar for FIELD OPERATION ONLY. Pin in centered position for transport.

NXH8,M63730,AA1 -19-09JUN98-1/1
