Attaching Gang to Rock/Wheatland C-Spring Standards

causym CAUTION: Gangs are heavy and sharp and can fall or roll causing serious injury or death to you or others. To prevent machine falling and causing injury, use suitable lifting devices or support stands. Block gang when not rolling into place. Wear gloves and other safety equipment.

1. Position gang under standards. Front gangs throw dirt outward and rear gangs throw dirt inward.

2. If distance between bearings has changed, first verify that gang was correctly assembled on gang bolt. Then, if correctly assembled, loosen outer standards only.

Do not loosen standard closest to center of machine as this standard is factory set for best disking action.

Move loosened standard to align it with bearing.

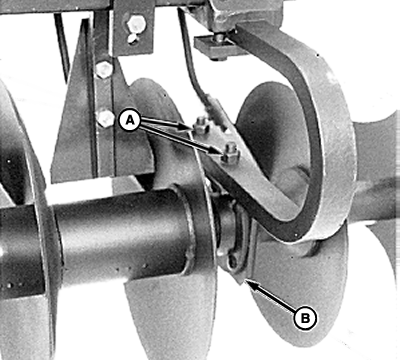

3. Attach bearing bracket (B) to standard closest to center of machine first, using round head bolts and nuts (A). Bearing is attached to standard side towards direction that dirt is thrown. Grease fitting is toward rear.

4. If inner standards had to be loosened, position them according to following instructions.

N52173


A-Nuts
B-Bracket
