Tightening C-Springs-Rock/Wheatland/BlackLand

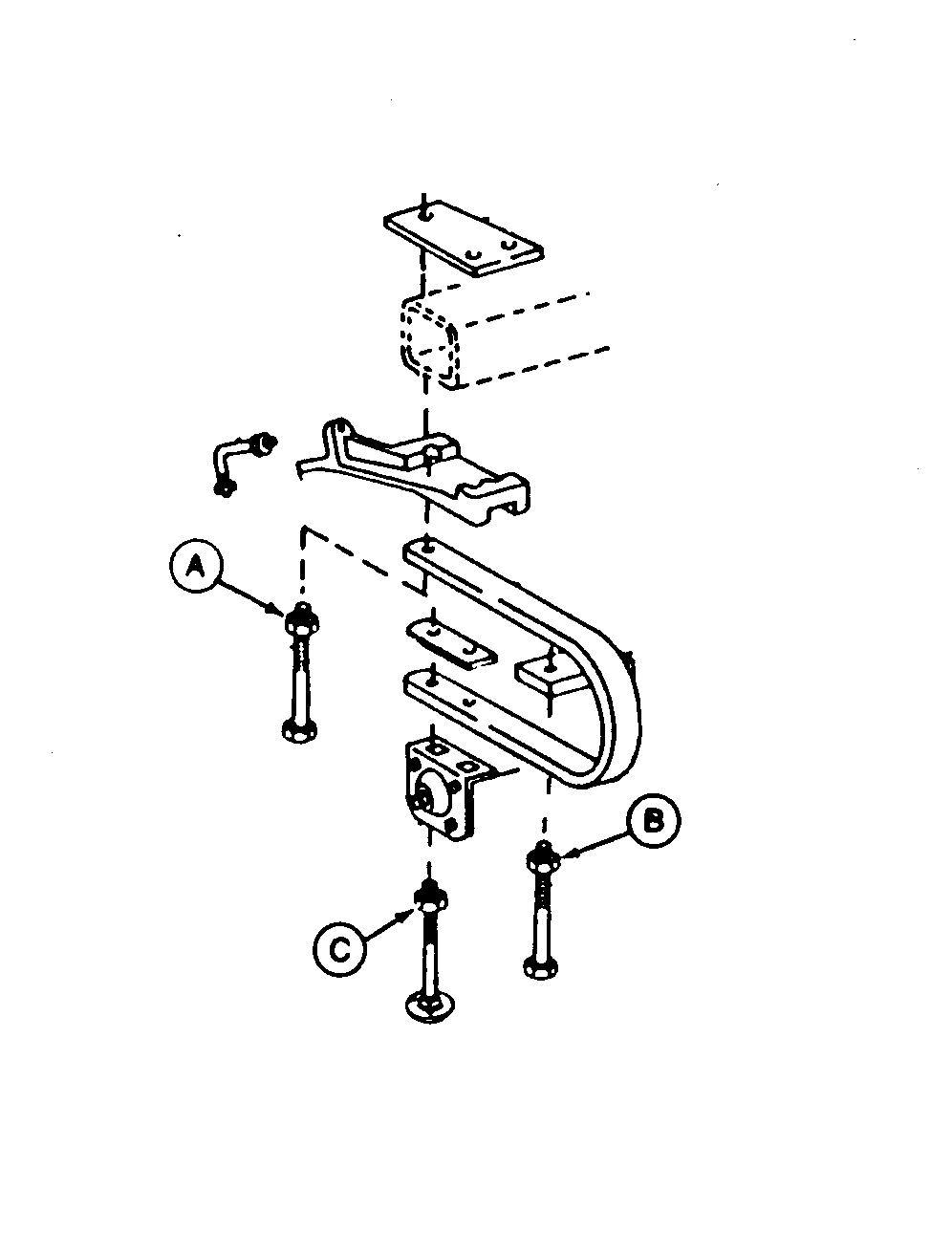

Tighten nuts on cap screws (A, B, and C) uniformly. Rotate tightening sequence among cap screws so no one cap screw is completely tightened on first attempt.
A-3/4 x 6-1/2 in. Cap Screw with Lock Nut (On non-tapered C-Spring); 3/4 x 6 in. Cap Screw with Lock Nut (Front main frame middle leaf spring only); 3/4 x 7 in. Cap Screw with Lock Nut on tapered C-Spring
B-3/4 x 7-1/2 in. Cap Screw with Lock Nut (2 used); 3/4 x 4 in. Cap Screw with Lock Nut (2 used on front main frame middle leaf spring only)
C-3/4 x 2-3/4 in. Round Head Bolt (2 used)
|
