Adjusting Rear Wing Stop 5-9.8 M (16 Ft 5 In.-32 Ft 1 In.)

causym CAUTION: Keep people away from machine when placing tractor SCV lever/switch in FLOAT position because unexpected movement can cause serious injury or death to you or others.

1. Attach rear wing stop (A) in longest position where two holes line up using 1/2 in. cap screws, flat washers and nuts. Tighten nuts.

2. Lower wing to floor.

3. Reposition wing stop in next LONGER hole position.

4. Fold wings and check adjustment of front and rear stops. All four should touch frame (rear first then front.)

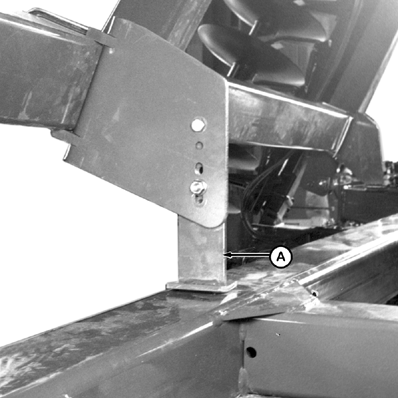

A-Rear Wing Stop

N42181ZJ

NXH8,M63760,ZK1 -19-23JUN98-1/1
