Hitch Clevis-Straight Tractor Drawbar

CAUTION: Restrict use of clevis to 104 kw (140 PTO hp) maximum tractor, 38 mm (1-1/2 in.) drawbar thickness maximum, and a 32 mm (1-1/4 in.) drawbar pin diameter maximum. THIS PIN MUST BE RETAINED SO IT CANNOT SLIP OUT DURING USE OF MACHINE. A runaway machine could cause severe injury or death to you or others.

IMPORTANT: Clevis MUST BE installed in lower hole and spacer in upper hole to obtain proper clevis-to-drawbar angle.

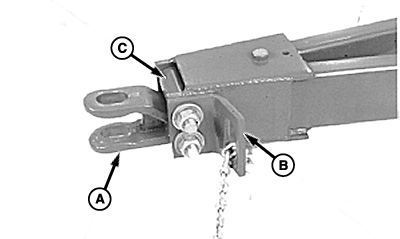

2. Install clevis (A) in BOTTOM HOLE with 1 x 7-1/2 in. cap screw, flat washer, and lock nut, reversing safety chain bracket (B). (Rigid machines use 1 x 7 in. cap screws.)

3. Install 1 x 7-1/2 in. top cap screw with spacer (C), flat washer, and lock nut. (Rigid machines use 1 x 7 in. cap screw with spacer (C).)

4. Rotate clevis up and down to ensure that clevis does not interfere with hitch plate (spacer should stop rotation).

5. Tighten nuts to specification.

Specification

A-Clevis
B-Chain Bracket
C-Spacer

NXN,635,K2B -19-17MAR97-1/1
