Identifying Disk Blades Not Eligible for Warranty

The following illustrations show types of disk blade failures which are NOT eligible for warranty.

Irregular, non-directional, tear-type fracture caused by rock or stump conditions.

B9213

Not Eligible

NXN,635,P44 -19-30JUN93-1/5

Irregular, non-directional, tear-type fracture caused by rock or stump conditions.

B9214

Not Eligible

NXN,635,P44 -19-30JUN93-2/5

Irregular, non-directional, tear-type fracture caused by rock or stump conditions.

B9215

Not Eligible

NXN,635,P44 -19-30JUN93-3/5

Chipping caused by rock or stump conditions.

B9216

Not Eligible

NXN,635,P44 -19-30JUN93-4/5

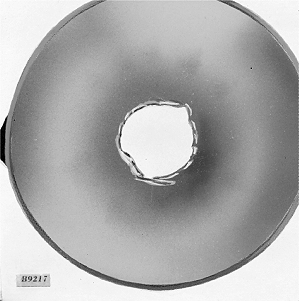

Center broken out, caused by rock or stump conditions, loose gang bolts, or frozen ground.

B9217

Not Eligible

NXN,635,P44 -19-30JUN93-5/5
