Checking Wing Fold Operation-If Equipped

causym CAUTION: Keep all persons away from machine when raising or lowering wings.

Always locate machine on level ground when raising or lowering wings.

Never raise or lower wings when moving.

Serious injury or death to you or others can result from contact with electric lines. Use care when raising wings near electric lines to avoid contact.

N39547
N39394

NXN,635,W8 -19-06MAY95-1/3

1. Place tractor transmission in park and set brakes, then start engine and pull back on SCV II control lever/switch (A) slowly to raise wing (retract wing cylinders). If wing action is smooth, raise wings completely.

2. Wings should raise when SCV lever/switch is pulled back and lower when lever/switch is pushed forward. If action is reversed, reverse hose connections in SCV II hydraulic coupler.

3. Move SCV II control lever/switch back and forth several times while observing wing fold operation. Operation should be smooth indicating there is no trapped air in system.

4. Wings should rest against stops when fully raised. (See ADJUSTING WING FOLD OPERATION in Service section.)

5. Place fold cylinder operating lever in neutral when machine is folded to attach wings.

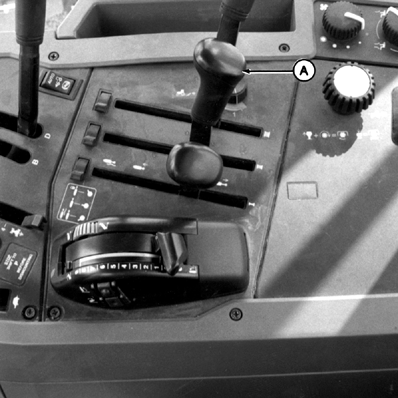

A-SCV II Control Lever/Switch

N42181YE

John Deere 7000 Series Tractors

N48108

John Deere 8000/9000/8020/9020 Series Tractors

NXN,635,W8 -19-06MAY95-2/3

causym CAUTION: Escaping fluid under pressure can penetrate skin causing serious injury to you or others. Avoid hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs see a doctor immediately. Any fluid injected in skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere and Company Medical Department in Moline, Illinois, U.S.A.

6. After attaching and cycling cylinders, check tractor hydraulic oil reservoir. Add oil, if necessary.

X9811

NXN,635,W8 -19-06MAY95-3/3
