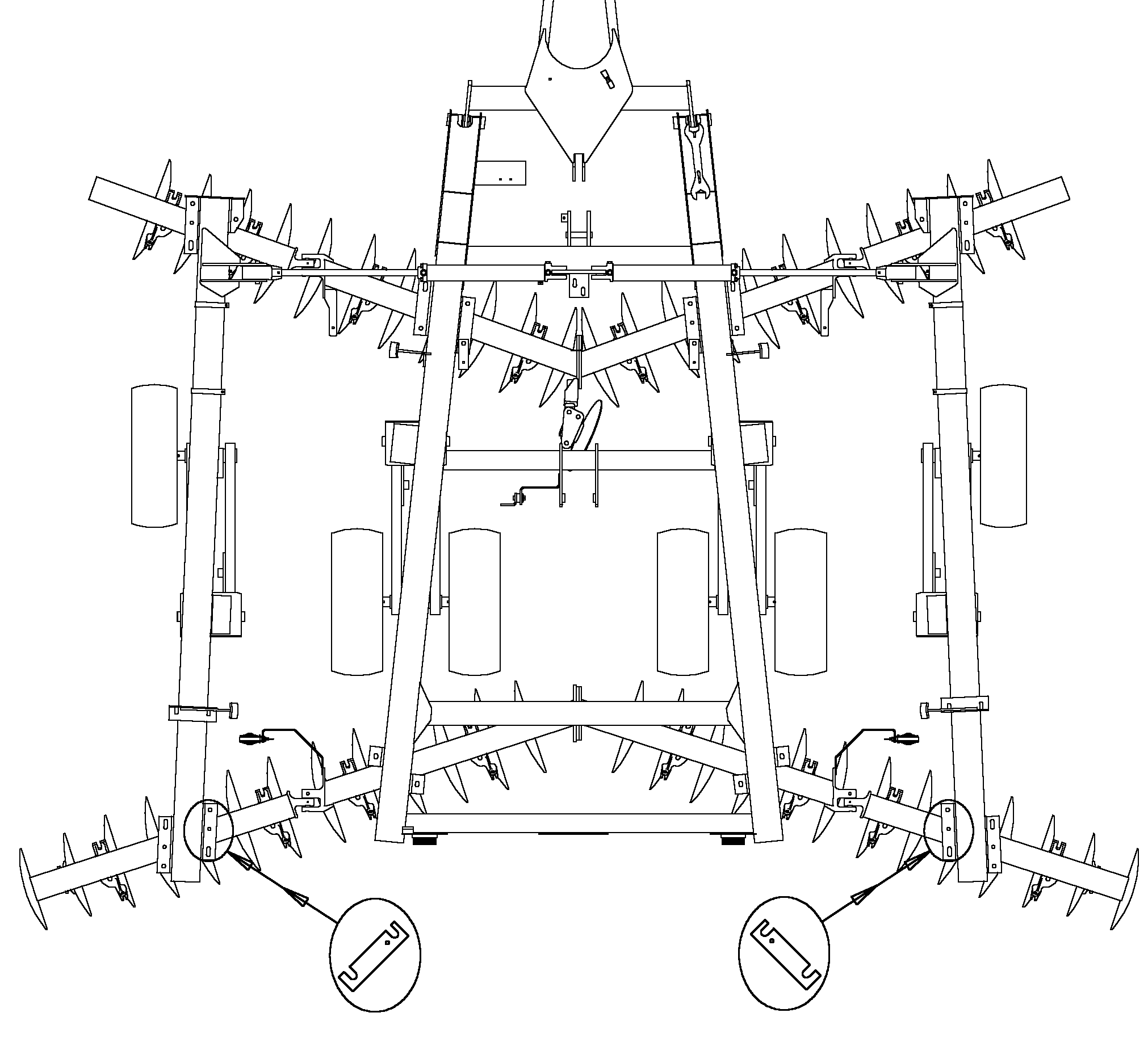

Shim Locations for 5.0 M-5.6 M (16 Ft 5 In.-18 Ft 3 In.)
|
|
IMPORTANT: Install shims at rear inner joints as shown. |
| Machine Size | Number of Shims Installed at Each Wing |
| 5.0 m (16 ft 5 in.) |
2 |
| 5.5 m (17 ft 11 in.) |
2 |
| 5.6 m (18 ft 3 in.) |
2 |
NXZ9,63799,DF2A -19-27APR99-1/1 |
