Shim Locations for 6.3 M-6.8 M (20 Ft 9 In.-22 Ft 2 In.)
|
|

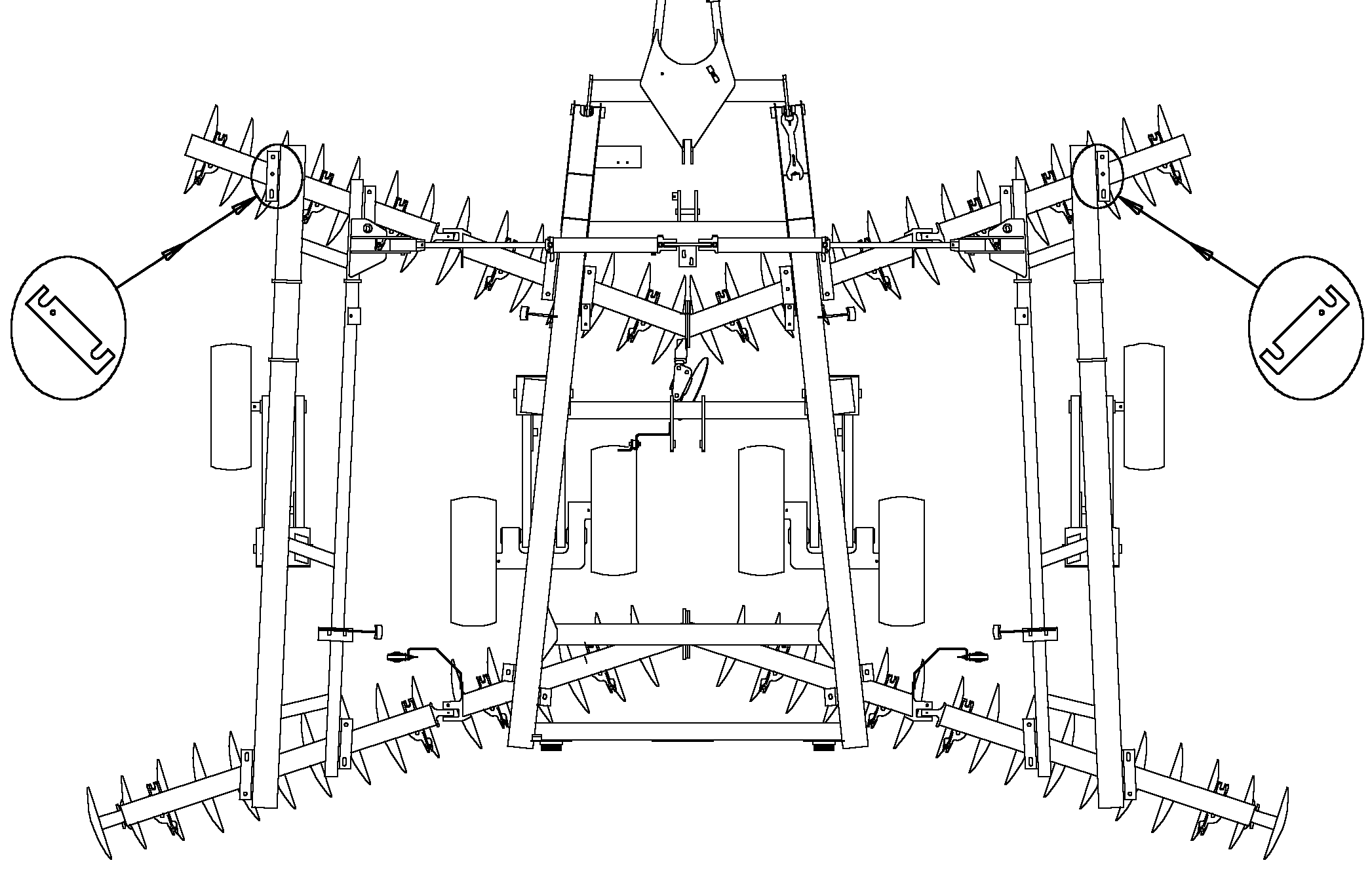

IMPORTANT: Install shims at front outer joints as shown. |
| Machine Size | Number of Shims Installed at Each Wing | |
|---|---|---|
| with harrow | without harrow | |
| 6.3 m (20 ft 9 in.) |
3 | 1 |
| 6.6 m (21 ft 9 in.) |
3 | 1 |
| 6.8 m (22 ft 2 in.) |
2 | 1 |
NXZ9,63799,DF3A -19-27APR99-1/1 |
