Shim Locations for 7.2 M-8.1 M (23 Ft 7 In.-26 Ft 5 In.)
|
|

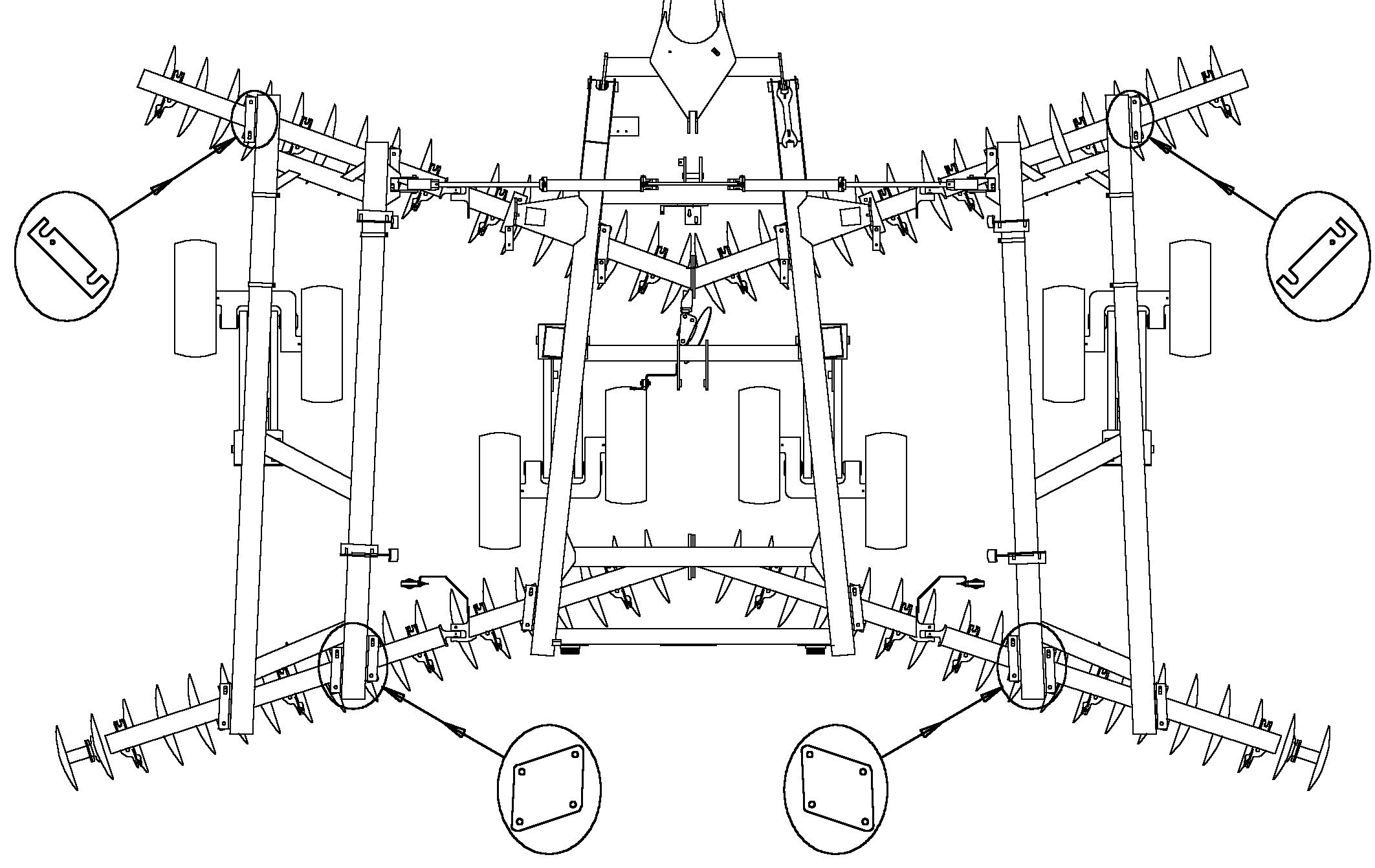

IMPORTANT: Install shims at front outer joints and spacer plates at rear inner joints as shown. |
| Machine Size | Number of Shims Installed at Each Wing | Spacer Plate (N242058) | |
| With Harrow | Without Harrow | ||
| 7.2 m (23 ft 7 in.) |
3 | 1 | none |
| 7.6 m (25 ft 1 in.) |
3 | 2 | 1 |
| 8.1 m (26 ft 5 in.) |
2 | 1 | none |
NXZ9,63799,DFXA -19-27APR99-1/1 |
