Shim Locations for 8.7 M-9.8 M (28 Ft 7 In.-32 Ft 1 In.)
|
|

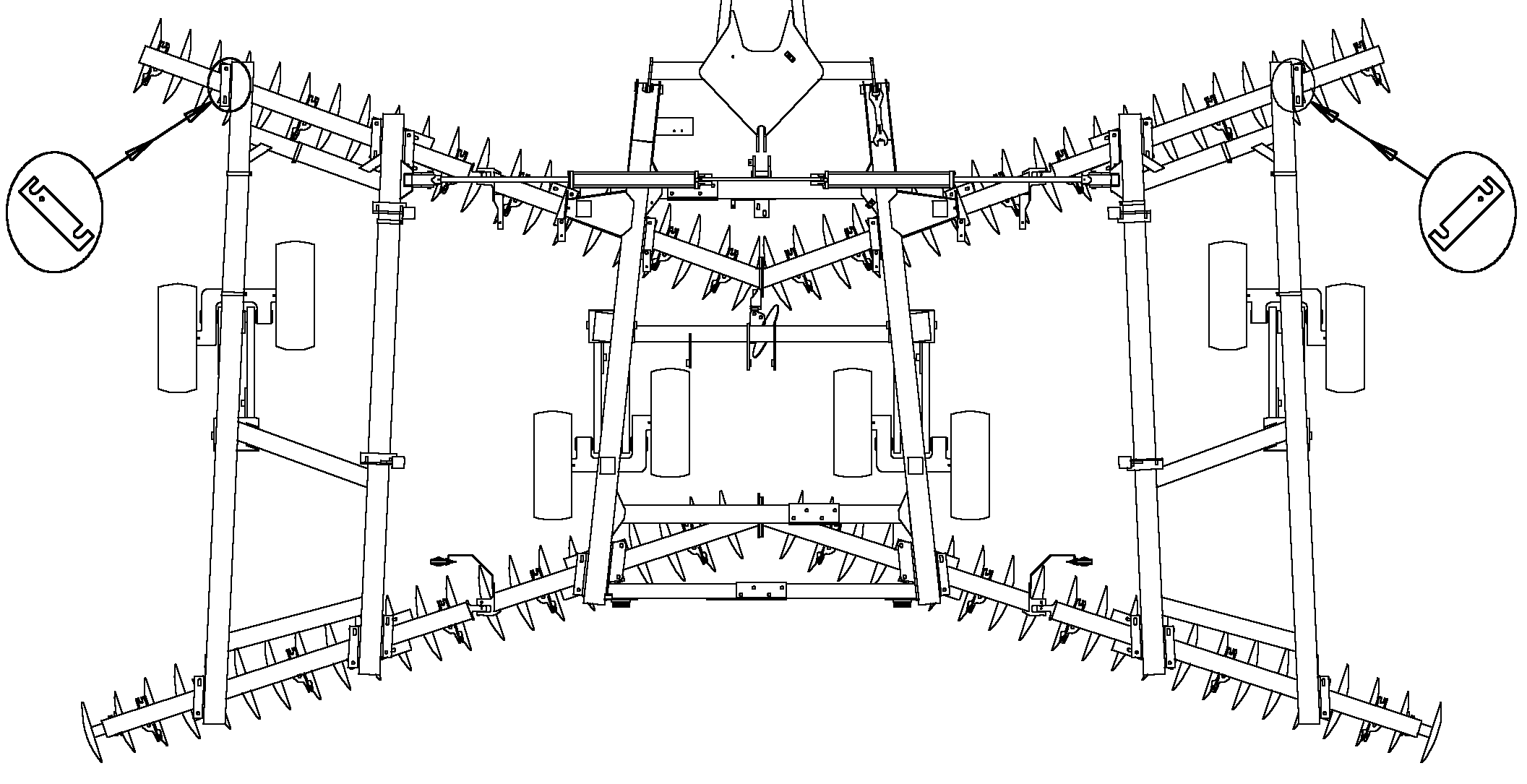

IMPORTANT: Install shims at front outer joints as shown. |
| Machine Size | Number of Shims Installed at Each Wing | |
| With Harrow | Without Harrow | |
| 8.7 m (28 ft 7 in.) |
3 | 2 |
| 8.9 m (29 ft 3 in.) |
3 | 2 |
| 9.8 m (32 ft) |
2 | 1 |
| 9.8 m (32 ft 1 in.) |
2 | 1 |
NXZ9,63799,DZ1A -19-27APR99-1/1 |
