Install Finishing Blade

Spools come in two sizes, 142 mm (5.6 in.) for 184 mm (7-1/4 in.) spacing and 187 mm (7.35 in.) for 229 mm (9 in.) spacing. Check to make sure you have correct spool for your machine.

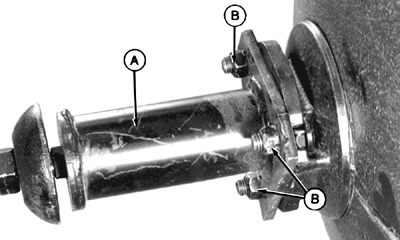

1. Attach finishing blade spool (A) with 5/8 x 1-3/4 in. round head bolts (B) and lock nuts.

NOTE: Blades come in 406 mm (16 in.) solid blade, 457 mm (18 in.) solid blade and 457 mm (18 in.) three lobed blade.

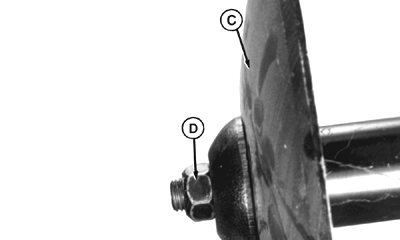

2. Attach blade (C) to spool with lock nut (D).


A-Finishing Blade Spool
B-Round Head Bolts, 5/8 x 1-3/4 In. and Lock Nuts (3 Used)
C-Blade
D-Lock Nut

N42181HK
N42181HL

NX,637AFB,MGS -19-19APR99-1/1
