Harrow Drawbars

IMPORTANT: Harrow drawbars are shipped with Transport/Stop pin (A) in Transport-Only position (B). Transport/Stop pin must be in Transport-Only position on all OUTER WING drawbars before machine is folded to prevent wing harrows from interlocking. HOWEVER, Transport/Stop pin must be in Field Position (C) on all MAIN FRAME and INNER WING drawbars before folding.

Transport/Stop pin on all drawbars must be in Field Position (C) while disking to allow drawbars to flex during operation. Failure to do so may result in damage to drawbars or harrow.

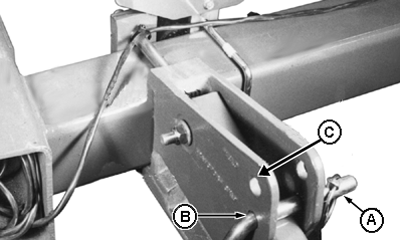

A-Transport/Stop Pin
B-Transport-Only Position
C-Field Position
