Installing Cylinder Lock-Up-Rigid Machine

IMPORTANT: To prevent machine damage, ensure cylinder lock-up is installed when transporting machine.

1. Place tractor transmission in PARK and/or set brakes, then start engine and pull back on SCV I tractor control lever/switch until depth control cylinder(s) are fully extended.

2. Remove spring locking pin and pin (B), and cylinder lockup (A).

Place cylinder lockup in field storage position (C) for field operation. Attach with pin and spring locking pin.

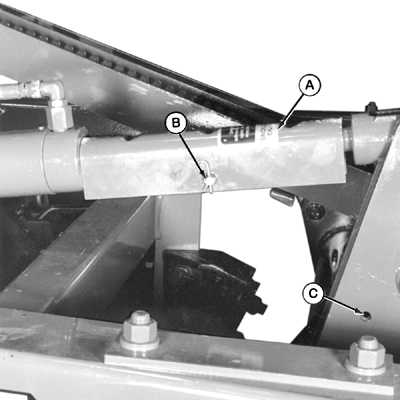

A-Cylinder Lockup
B-Spring Locking Pin and Pin
C-Storage Position

N42188SB

NX,M63720,N -19-09JUN98-1/1
