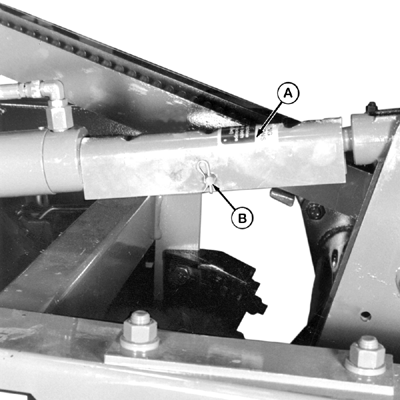

Installing Transport Lock-Up-Rigid Machines Only1. Fully extend depth control cylinders to raise machine.2. On a machine with just one depth control cylinder, install transport lockup (A). Attach it in place with pin (B) and spring locking pin.
|
|
NX,M63725,T -19-09JUN98-1/1 |
