Using Depth Stops-Rigid Machine Only

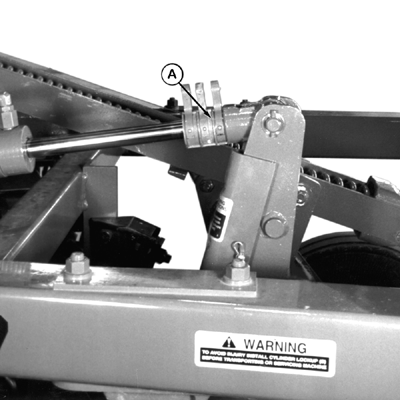

Depth stop (A) should be installed on depth control cylinder rod to maintain consistent depth.

Depth stops are available in sizes from 20-38 mm (3/4-1-1/2 in.).

To install, spread ring open and snap on cylinder rod.

Gauge wheels should be used to support frame for level disking.

A-Depth Stop
