Adjusting Front-to-Rear Leveling in Field-Crank Adjusted

If machine is leaving a valley in center, turn leveling crank (A) clockwise to raise front gangs and lower rear gangs.

If machine is leaving a center ridge, turn leveling crank counterclockwise to lower front gangs and raise rear gangs.

NOTE: Machine may need readjusting from field to field, when using a tractor with a different drawbar height or when gauged depth setting is changed.

In some soil conditions, when a center valley cannot be eliminated, turnbuckle-to-link connection should be changed to rear hole. (See CHANGING TURNBUCKLE CONNECTION in Preparing Machine section.)

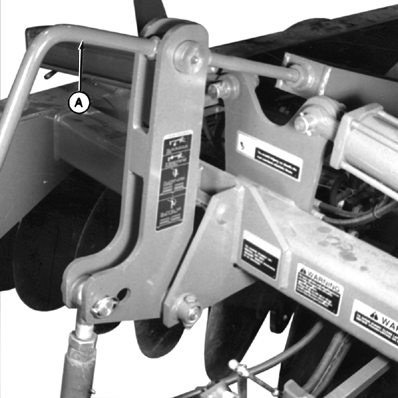

A-Leveling Crank
